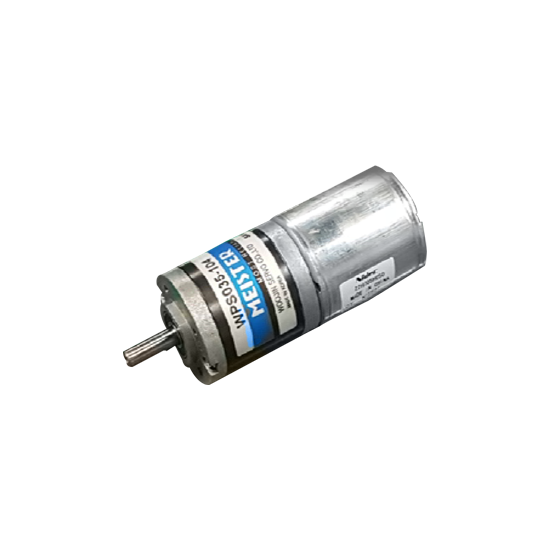

Planetary Geared Motor

NIDEC22H-WPS035

기본사양

Reduction Ratio: 1/5 - 1/1101
Rated Torque(kg/cm): 0.4 - 20.0
Rated Speed(rpm): 4.0 - 880.0(rpm)

제품목록

■ GEARED MOTOR SPECIFICATION

DATA Length (L) Gear Ratio Rated Torque Rated Speed
Unit [mm] [ - ] [kg-cm] [rpm]
1-Stage 23.2 1/5 0.4 862.7
2-Stage 30.9 1/15 1.0 287.6
1/26 1.7 169.2
1/35 2.2 126.9
1/42 2.7 103.9
3-Stage 38.6 1/46 2.4 95.9
1/78 4.0 56.4
1/104 5.3 42.3
1/127 6.5 34.6
1/133 6.8 33.2
1/177 9.1 24.9
1/216 11.1 20.4
4-Stage 46.3 1/234 9.6 18.8
1/312 12.8 14.1
1/381 20 11.5
1/398 20 11.1
1/531 20 8.3
1/648 20 6.8
1/677 20 6.5
1/902 20 4.9
1/1101 20.0 4.0

■ MOTOR SPECIFICATION

Model Nidec CMC_22H series
Voltage DC 12V
Rated Speed 4400 rpm
Rated Current 1.5 A
Rated Torque 0.1 kg-cm
